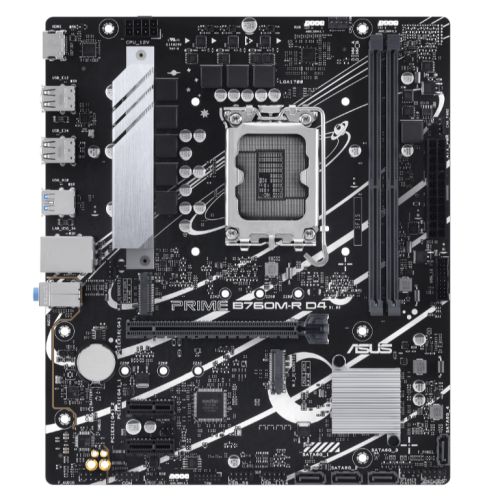

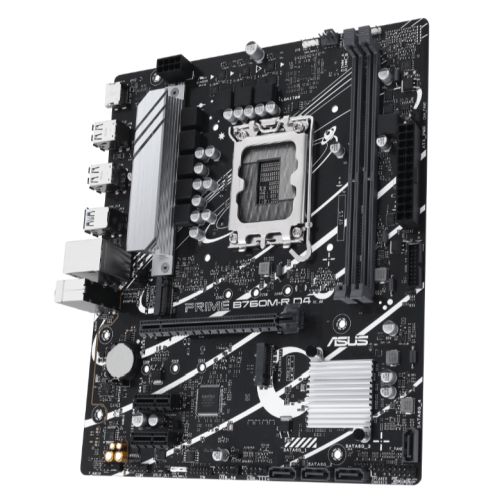

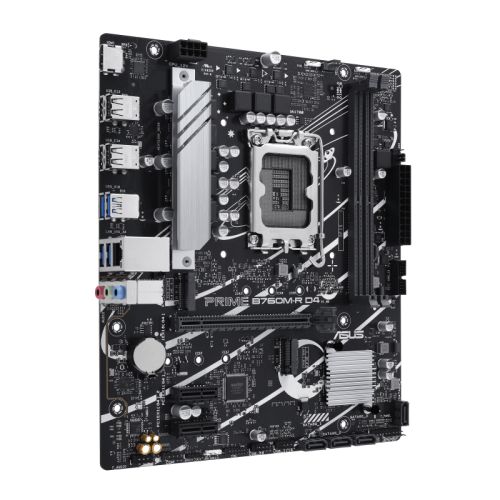

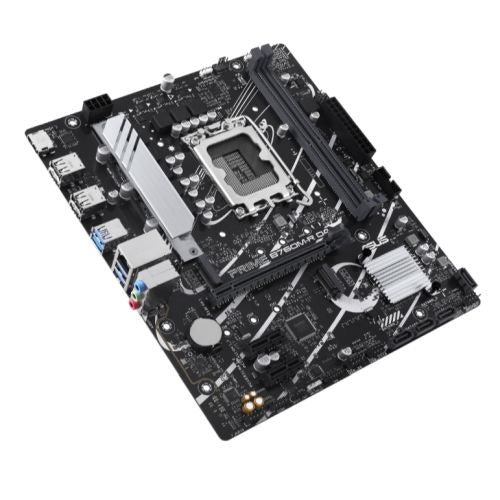

Asus PRIME B760M-R D4, Intel B760, 1700, Micro ATX, 2 DDR4, HDMI, 2.5G LAN, PCIe4, 2x M.2
Regular price
£96.80
inc. VAT
Couldn't load pickup availability
ASUS PRIME B760M-R D4, an Intel® B760 LGA 1700 micro-ATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, HDMI™, SATA 6 Gbps, front USB 5Gbps ports, Aura Sync
- Intel® LGA 1700 Socket_ Ready for 14th,13th and 12th Gen Intel® processors
- Ultrafast Connectivity_ PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 5Gbps support
- Comprehensive Cooling_ VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting_ Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
- Two-Way AI Noise Cancelation_ Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Prime
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th & 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-R D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Flexibility
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Cooling
PRIME B760 series are engineered with multiple onboard heatsink and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 14th & 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Customization
PRIME B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
** Click here for full product details **
** Click here for full product details **
USB Ports Supported
4 x SATA III 1 x M.2 (2242/2260/2280) - PCIe 4.0 x4 1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Wireless
-
LAN
2.5GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Rear: 4 x USB 5Gbps Type-A 4 x USB 2.0 Front: 2 x USB 5Gbps 4 x USB 2.0
1 x PCIe 4.0 x16 2 x PCIe 4.0 x1

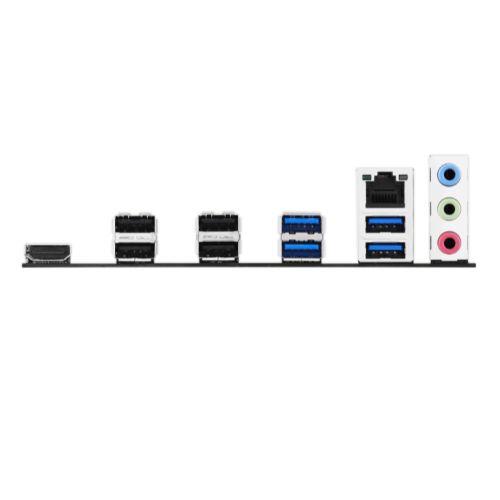

Back Panel I/O Ports
4 x USB 5Gbps Type-A 4 x USB 2.0 1 x HDMI 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks
Internal I/O Connectors
1 x 4-pin CPU Fan 2 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 2 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 5Gbps 2 x USB 2.0 3 x Addressable Gen2 1 x Clear CMOS 1 x COM Port 1 x Front panel audio
.
1 x S/PDIF Out 1 x Speaker 1 x SPI TPM (14-1pin) 1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables 1 x I/O shield 2 x M.2 anchors 1 x Quick start guide
Additional Features
Storage
PCI/PCI Express
Motherboard Type
Click here for CPU support
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel B760
#Hide#DDR Type
DDR4
CPU Support
RAM Technology
1 x HDMI
DDR4 (Dual Channel) Supports Intel Extreme Memory Profile (XMP)
RAM Slots
2 x DIMM
RAM Speeds
Up to 5333(OC)
Maximum Memory
64GB
Graphics
Integrated Graphics* *Graphics specifications may vary between CPU types
Graphics Ports
See Overview
