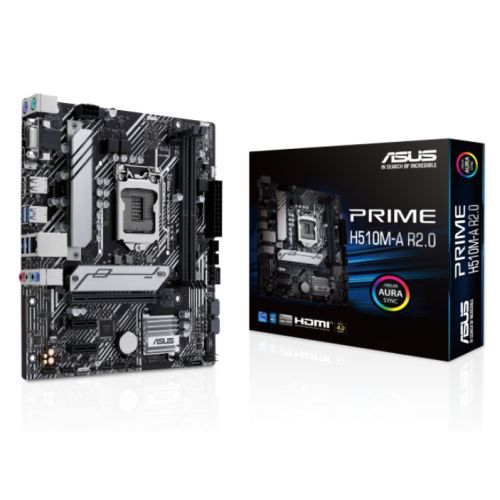

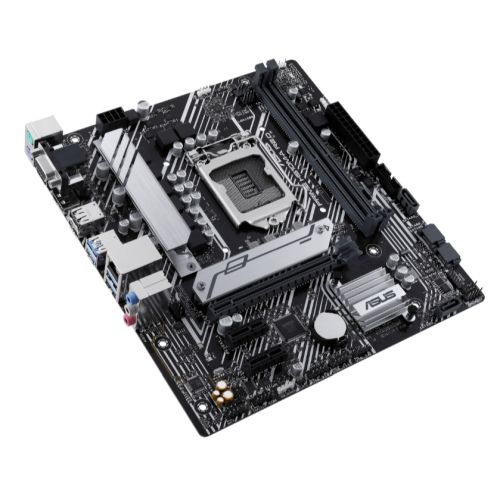

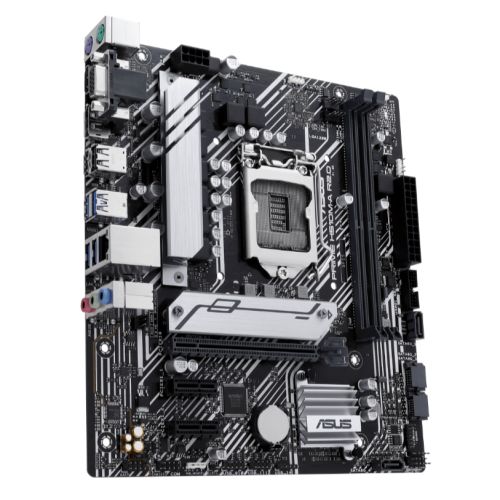

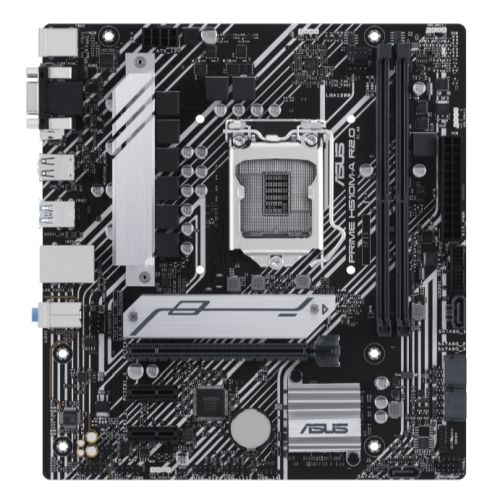

Asus PRIME H510M-A R2.0, Intel H470, 1200, Micro ATX, 2 DDR4, VGA, HDMI, DP, 1x M.2
Regular price
£87.69
inc. VAT
Couldn't load pickup availability
Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, DisplayPort/HDMI™/VGA, USB 3.2 Gen 1 ports, SATA 6 Gbps, AURA Addressable Gen 2 headers, AURA SYNC, Armoury Crate, Q-LED Core
- Intel® LGA 1200 socket_ Ready for 11th and 10th Gen Intel® Processors
- Comprehensive cooling_ VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity_ 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
- Aura Sync RGB Lighting_ Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- 5X Protection III_ Multiple hardware safeguards for all-round protection
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-A R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
Cooling
Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Customisation
Prime H510 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
** Click here for full product details **
USB Ports Supported
1 x PCIe 4.0 x16 2 x PCIe 3.0 x1
Storage
4 x SATA III 1 x M.2 (2242/2260/2280) - SATA & PCIe 3.0 x4
Wireless
-
LAN
GB LAN
Audio
Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC
Rear: 4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Front: 2 x USB 3.2 Gen1 5 x USB 2.0
-

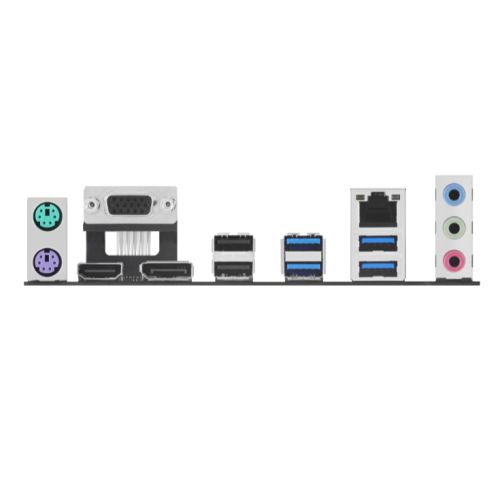

Back Panel I/O Ports
4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x DisplayPort 1 x VGA 1 x HDMI 1 x Realtek 1Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard 1 x PS/2 Mouse
Internal I/O Connectors
1 x 4-pin CPU Fan 2 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 2 x USB 2.0 1 x USB 2.0 2 x AURA Addressable Gen2 2 x AURA RGB 1 x Clear CMOS
.
1 x COM Port 1 x Front Panel Audio 1 x S/PDIF Out 1 x Speaker 1 x SPI TPM (14-1pin) 1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 SSD screw package 1 x User guide
Additional Features
PCI/PCI Express
Multi-GPU Support
Motherboard Type
11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Form Factor
Micro ATX
Socket
Intel 1200 - Rocket Lake
Chipset
Intel H470
#Hide#DDR Type
DDR4
CPU Support
RAM Technology
1 x VGA 1 x HDMI 1 x DisplayPort
DDR4 (Dual Channel) Supports Intel Extreme Memory Profile (XMP)
RAM Slots
2 x DIMM
RAM Speeds
Up to 3200(OC)
Maximum Memory
64GB
Graphics
Integrated Graphics* *Graphics specifications may vary between CPU types
Graphics Ports
See Overview
