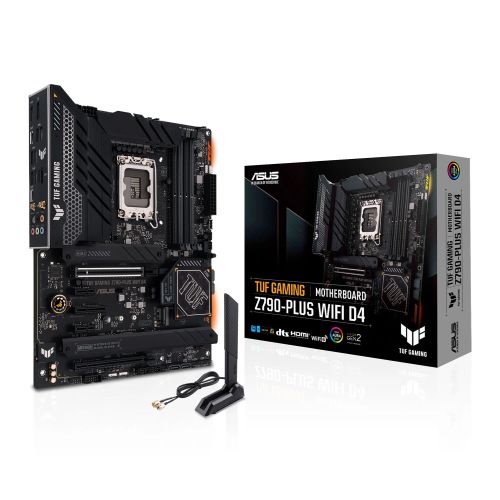

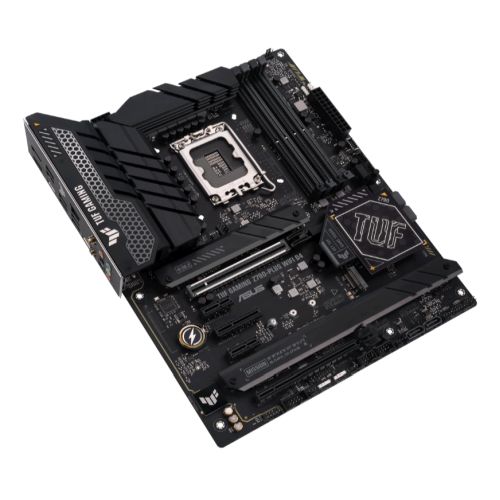

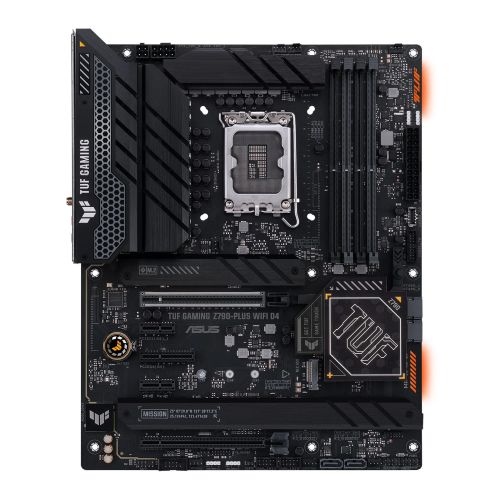

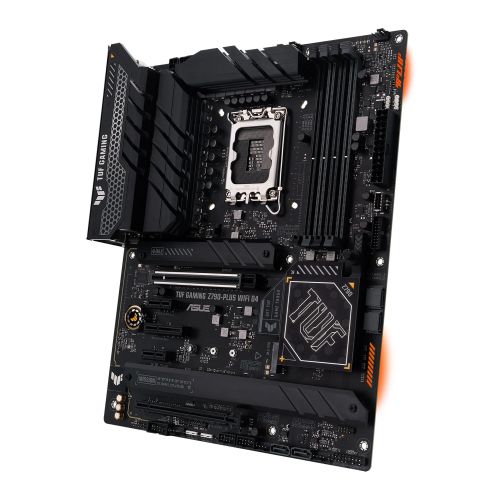

Asus TUF GAMING Z790-PLUS WIFI D4, Intel Z790, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, RGB, 4x M.2
Regular price
£270.82
inc. VAT
Couldn't load pickup availability
TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming.
TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.
- Power stages - 16+1 DrMOS power stages (rated 60A) with enlarged VRM heatsinks
- PCIe - PCIe® 5.0 for graphics cards
- Memory module support - DDR4 memory module support
- Connectivity - USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header
- PC DIY friendly - PCIe Q-Release
- Ethernet - 2.5 Gb Ethernet
- WiFi 6
- AI Cooling II
- Two-Way AI Noise Cancelation
Intelligent Control
The TUF GAMING Z790 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING Z790-PLUS WIFI D4 is the perfect foundation for your next Intel battle rig.
Easy PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Immersive Gaming
TUF GAMING Z790 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
** Click here for full product details **
USB Ports Supported
4 x SATA III 1 x M.2 (2242/2260/2280/22110) - PCIe 1 x M.2 (2242/2260/2280) - PCIe 1 x M.2 (2242/2260/2280/22110) - PCIe 1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Wireless
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
LAN
2.5GB LAN
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
1 x USB 3.2 Gen2x2 Type-C (at back) 1 x USB 3.2 Gen2 Type-C (at back) 2 x USB 3.2 Gen2 Type-A (at back) 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board) 4 x USB 2.0 (at mid-board) 1 x Front Panel Type-C USB 3.2 Gen2 Header
1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (supports x4 mode) 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1

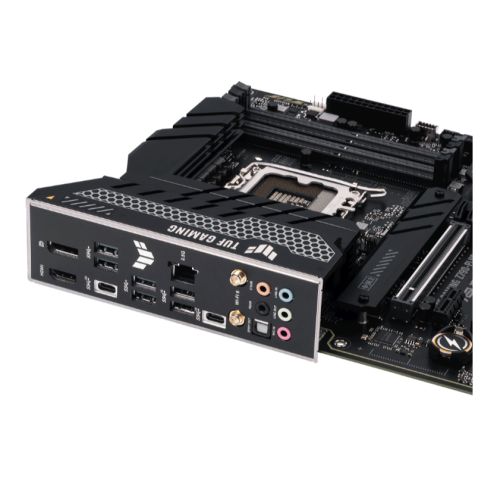

Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C 3 x USB 3.2 Gen2 ports (2 Type-A, 1 Type-C) 4 x USB 3.2 Gen1 Type-A 1 x DisplayPort 1 x HDMI 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out
Internal I/O Connectors
1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x 4-pin +12V 4 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen2 Type-C 1 x USB 3.2 Gen1 2 x USB 2.0
.
3 x Addressable Gen2 1 x Aura RGB 1 x Clear CMOS 1 x COM Port 1 x Front Panel Audio 1 x 20-3 pin System Panel 1 x Thunderbolt (USB4)
Accessories
2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antenna 1 x TUF GAMING sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD 1 x TUF Certification card 1 x User guide
Additional Features
Storage
PCI/PCI Express
Motherboard Type
Click here for CPU support
Form Factor
ATX
Socket
Intel 1700
Chipset
Intel Z790
#Hide#DDR Type
DDR4
CPU Support
RAM Technology
1 x HDMI 1 x DisplayPort
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
Up to 5333(OC)
Maximum Memory
128GB
Graphics
Integrated Graphics* *Graphics specifications may vary between CPU types
Graphics Ports
See Overview
