Be Quiet! 850W Pure Power 12 M PSU, Fully Modular, Rifle Bearing Fan, 80+ Gold, ATX 3.0, PCIe 5.0, Dual Rail
Regular price
£105.36
inc. VAT
Couldn't load pickup availability
Pure Power 12 M 850W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 850W offers the best combination of features with outstanding compatibility.
- 80 PLUS® Gold efficiency (up to 93.2%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent 120mm be quiet! fan
- Advanced stability and voltage regulation thanks to LLC technology
- 2 strong 12V-rails
- Modular cables for maximum build flexibility
- One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
- 10-year manufacturer’s warranty
80 PLUS® Gold Certified
Very high operating efficiency
Pure Power 12 M 850W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.2%. The most compelling benefit_ lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 850W is always the correct choice for quiet systems and gaming PCs!
Future-Proof Your System
Fulfills all ATX 3.0 specifications
Pure Power 12 M 850W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
The New Standard of Power
For massive transient loads
Pure Power 12 M offers 850W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time_ Pure Power 12 M 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
Unprecedented Silent Operation
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.
High-Class Technologies
Rock-solid stability
With its LLC topology Pure Power 12 M 850W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.
Modular Cables
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 850W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Weight/Dimensions
230V, 2% load_ 73.8% 230V, 10% load_ 87.1% 230V, 20% load_ 91.7% 230V, 50% load_ 93.2% 230V, 100% load_ 91.2%
MTBF
100,000 hours
Protection
Over temperature protection Over current protection Over power protection Short circuit protection Over Voltage protection Under Voltage protection Surge & Inrush Protection
Additional Features
See Overview / Videos
Package Contents

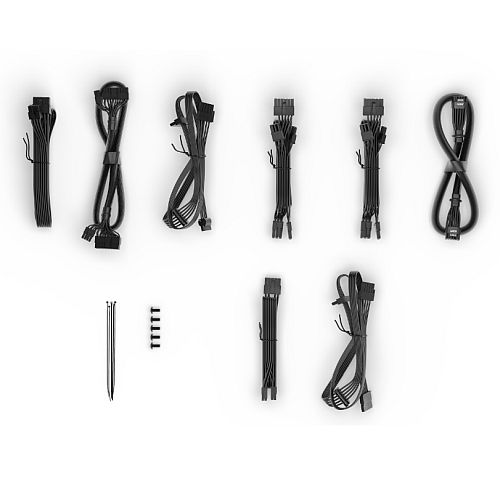

Power Supply Cables Screws Cable ties User manual
1.85 kg (LxWxD) 160 x 150 x 86 mm
80+ Gold
Package Weight
3.4000 kg
Warranty
10 Years
Efficiency
80+ Certification
Form Factor
850 W
Series
Be Quiet! Pure Power 12 M
Modular
Fully Modular
Compatability
ATX 3.0 EPS 12V v2.92
#Hide#Wattage Range
800 - 860W
Wattage
Connectors
dB(A) at 10% load_ 9.3 dB(A) at 20% load_ 9.4 dB(A) at 50% load_ 9.5 dB(A) at 100% load_ 25.7

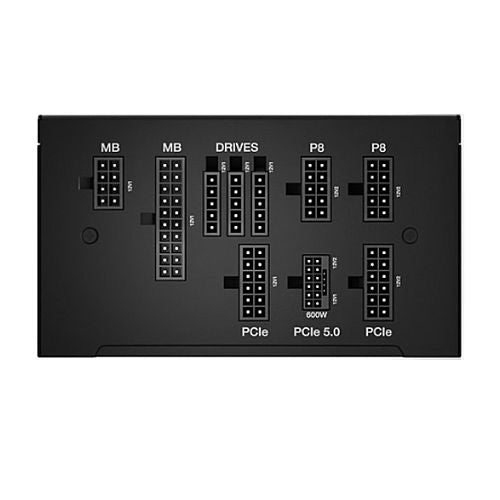

1 x ATX-Motherboard (20+4-pin) 1 x P4+4 (CPU) 1 x P8 (CPU) 1 / 600 x 12VHPWR cable / W 4 x PCI-e 6+2-pin (GPU) 6 x SATA 2 x PATA
Rail Design
2 strong 12V-rails
AC Input
AC 100-240 V
Fan Type
120mm silence-optimized be quiet! fan
Fan Bearing
Rifle Bearing
Noise
