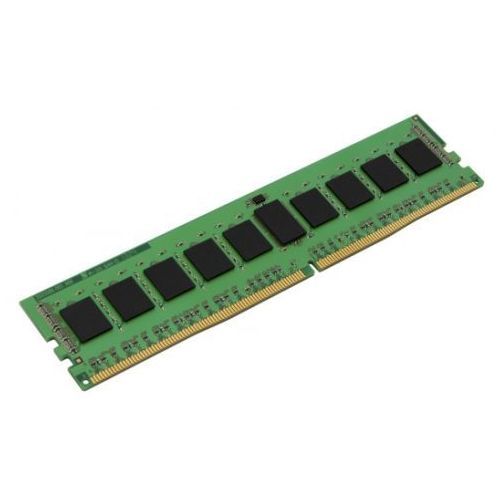

Kingston 8GB, DDR4, 2666MHz (PC4-21300), CL19, DIMM Memory
Regular price
£14.93
inc. VAT
Couldn't load pickup availability
ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA
components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Features
- Power Supply_ VDD=1.2V Typical
- VDDQ = 1.2V Typical
- VPP - 2.5V Typical
- VDDSPD=2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB_ Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Warranty
No
#Hide#LED Lighting
No
Additional Information
See Overview
Package Type
Blister Pack
Package Weight
0.0225 kg
Lifetime
19-19-19
Heatspreader
Timings
Series
2666 MHz
DDR Type
DDR4
Size
1 x 8GB
#Hide#Individual Module Size
8GB
#Hide#Total Capacity
8GB Total
Speed
Compliance
1.2V Typical
PC4-21300
Pins
288-pin
CAS Latency
CL19
Data Integrity Check
Non-ECC
Low Voltage
No
Voltage
