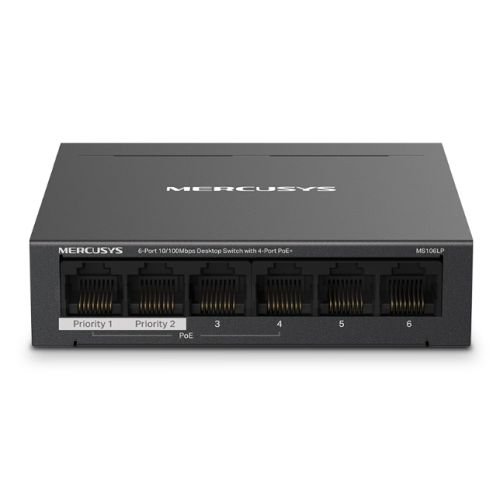

Mercusys (MS106LP) 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+, Metal Case
Regular price
£27.80
inc. VAT
Couldn't load pickup availability
6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- 6 Ports_ 6x 10/100 Mbps RJ45 ports with 4 PoE+ ports
- Two Cables in One_ With four PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports*
- 2x Uplink Ports_ MS106LP provides 2x uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m_ Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode_ One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices_ Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing_ Allows for efficient heat dissipation and long network life
- Plug and Play_ Simple to use and saves time and effort
- PoE Auto Recovery_ Automatically reboots your dropped or unresponsive PoE-powered devices
4 PoE+ Ports (40 W Budget) for Network Deployment
Ports 1-4 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS106LP provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 40 W PoE power budget* for the 4x PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
Power over Ethernet_ Two Cables in One
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Extend Mode** increases PoE transmission distance to 250 m. MS106LP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS106LP provides 2x uplink ports when turning on the isolation mode.
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
MS106LP offers auto-negotiation (10/100M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
MS106LP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS106LP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS106LP provides 2x uplink ports when turning on the isolation mode.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS106LP offers auto-negotiation (10/100M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS106LP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
6-Port Desktop Switch with 4-Port PoE+ (MS106LP) Power Adapter Quick Installation Guide
Package Type
Retail
Package Weight
To be confirmed
Warranty
3 Years
#Hide#POE
Yes
Operating Temperature_ 0°C~40°C (32°F~104°F) Storage Temperature_ -40°C~70°C (-40°F~158°F) Operating Humidity_ 10%~90% RH non-condensing Storage Humidity_ 5%~95% RH non-condensing
Package Contents
Environment
Rackmountable
Standard: Compliant with 802.3 af/at Powered Devices PoE Ports_ Port 1- Port 4 PoE Power Budget_ 40 W
Managed
No
Number of Ports
6
Max RJ45 Transfer Rate
10/100 Mbps
Interface(s)
6 x 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
PoE Ports (RJ45)
Standards and Protocols
See Overview
IEEE 802.3x Flow Control
Power Supply
External Power Adapter (Output: 53.5V/0.81A)
Dimensions
99.8 x 98 x 25 mm
Mac Address Table
2K
Jumbo Frame
2 KB
Advanced Functions
