Sparkle Intel Arc B570 GUARDIAN OC, 10GB DDR6, HDMI, 3 DP, 2660MHz Clock, Blue Breathing Light, Overclocked

Out of stock
SKU: INARB570G10SPGU0C
Regular price £243.62 inc. VAT
 More payment options

Product details

  • Type Graphics Cards
  • Vendor SPARKLE
  • SKU INARB570G10SPGU0C
  • Barcode 4711342290856

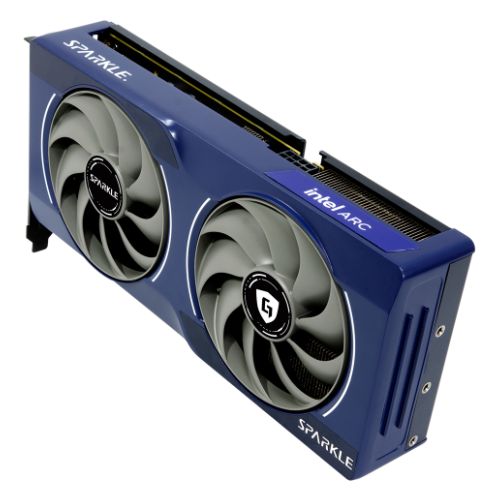

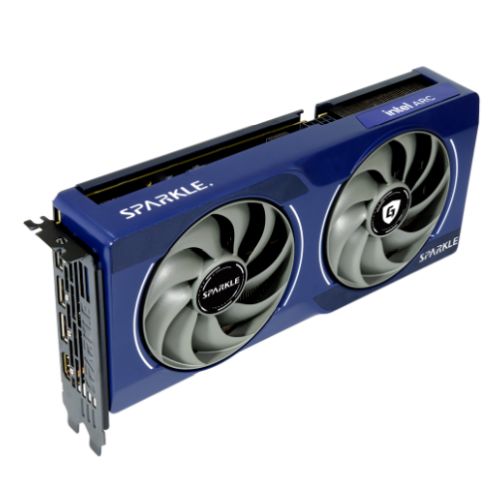

SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card , 10GB GDDR6, TORN Cooling 2.0 , Axial Breathing Light, Metal Backplate

  • Boost Clock_ 2 6 60 MHz
  • Xe Core_ 18
  • Ray Tracing Units_ 18
  • Intel® XMX Engines_ 144
  • GPU Peak Tops (Int8): 203
  • Memory Size_ 10GB GDDR6
  • Graphics Memory Interface_ 160 bit
  • Graphics Memory Bandwidth_ 380 GB/s
  • Max Res.: Up to 8K at 120Hz HDR with DSC
  • PCI Express Configurations_ PCI Express 4.0 x 8
  • TBP: 170 Watt
  • Lighting: Blue Breathing Light


The SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card, offers high resolution gaming with Intel XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground. GUARDIAN series equipped TORN 2.0 Cooling with double customized AXL fans, 2.2 slot design and full metal backplate. A blue breathing light effect has add ed a touch of elegance to your gaming
setup





Key Features
  • TORN Cooling 2.0

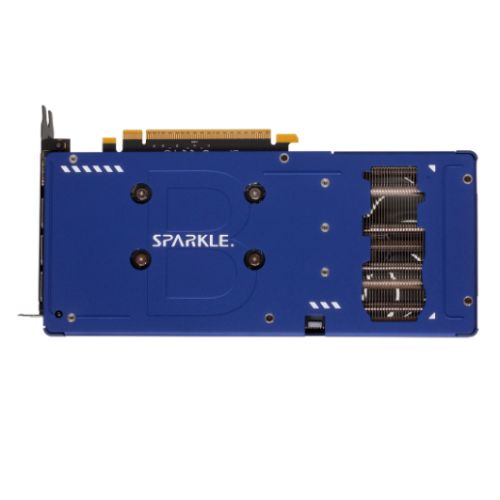

  • Metal Backplate, Pre Installed
  • Ray Tracing
  • Variable Rate Shading (VSR)
  • DirectX 12 Ultimate
  • Vulkan 1.3
  • OpenGL 4.6
  • OpenCL 3.0
  • Adaptive Sync
  • AV1 Encode / Decode
  • VP9 Bi t stream & Decoding
  • Intel Deep Link Hyper Compute
  • Intel Deep Link Hyper Encode
  • Intel Deep Lin k Stream Assist


Package Type
600W or greater recommended
Connectors Required
1 x 8-pin power
Additional Features
See Overview
Dimensions
242 x 105 x 44 mm
Slot Size
2.2 Slot
Retail
TORN Cooling 2.0 Dual Axial Fans
#Hide#Lighting Effects
Yes
#Hide#HDMI
Yes (HDMI)
#Hide#DisplayPort
Yes (DisplayPort)
Package Weight
1.6330 kg
Warranty
PSU Requirements
Cooling
Chipset Manufacturer
160-bit
Interface
PCI Express 4.0
Graphics Chipset
Intel Arc B570
Memory Size
10GB
Memory Type
DDR6
Memory Interface
Core Clock
4
Boost Clock_ 2660 MHz
Intel XMX Engines
144
Outputs

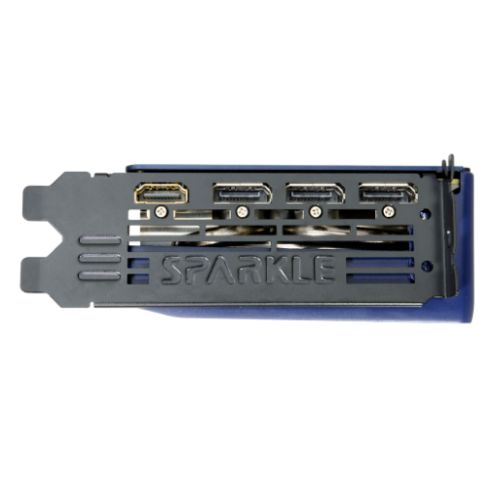

1 x HDMI 2.1 3 x DisplayPort 2.1
Resolution
Digital Max Resolution_ 7680 x 4320
DirectX Support
DirectX 12 Ultimate
Max Display Support
3 Years
